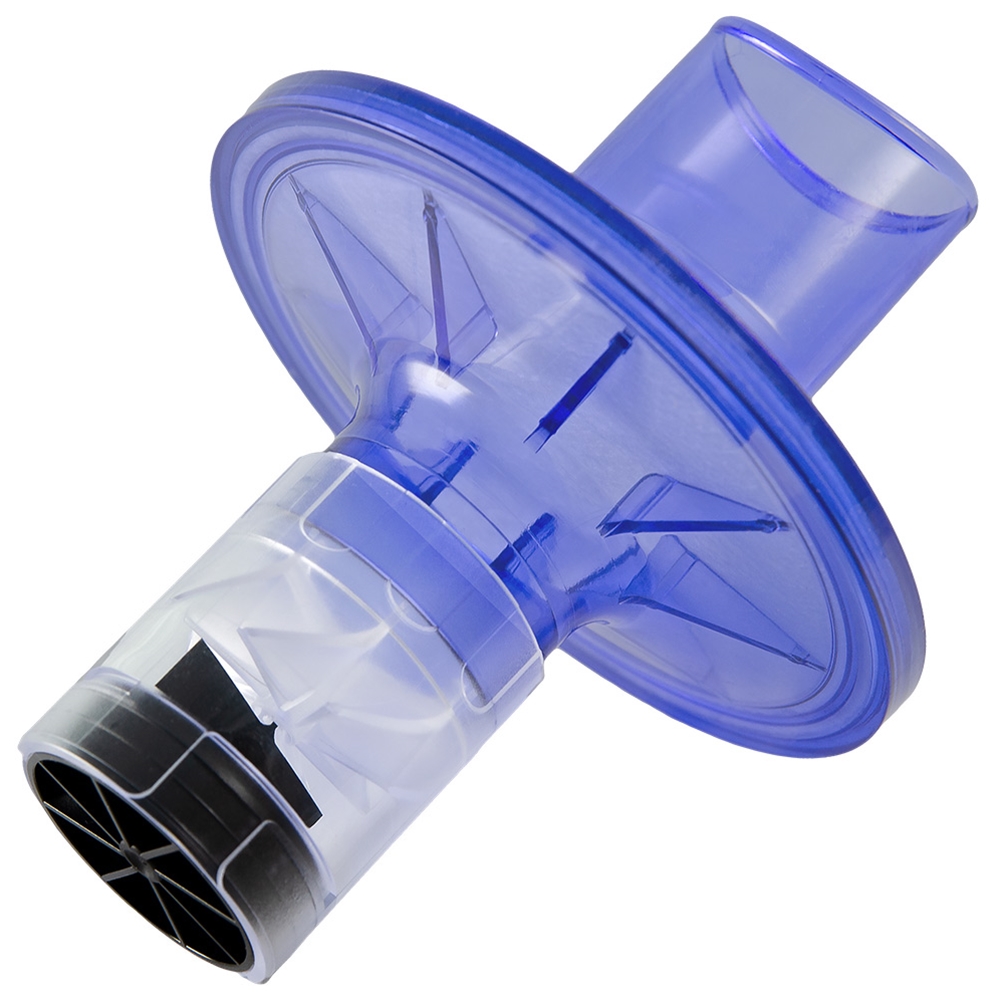

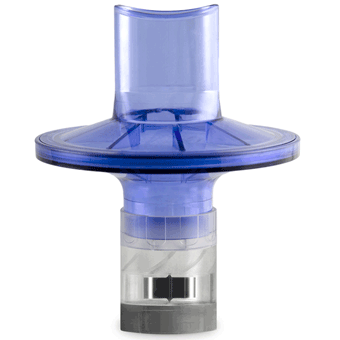

MIR FlowMIR VBMax PFT过滤器套件，用于Spirolab, Spirobank, SpiroDoc, MiniSpir肺活量计

Spirobank Spirodoc Spirometer Dimensions 4.2 × 2.4 × 1.0 in (101 x 48 x 16 mm) Display 3 in Connectivity USB, Bluetooth 2.1 Storage 10,000 tests, or 900 hours of oximetry Spirometry Parameters FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25–75, Lung Age, Extrap. Volume, FET, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FIVC, FIV1, FIV1/FIVC, PIF, VC, IVC, IC, ERV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV measured, MVV calculated. Oximetry Parameters SpO2 and Pulse Rate (Baseline, Min, Max, Average), T90% (SpO2<90%), T89% (SpO2<89%), T88% (SpO2<88%), T5% (∆SpO2>5%), ∆Index (12s), SpO2 Events, Pulse Rate Events (Bradycardia, Tachycardia), Step counter, Physical Activity (VMU), Recording time, Analysis time. 6MWT Parameters O2–Gap, Estimated Distance, Walked Distance, Predicted Distance (Min, Standard), T∆2% (SpO2≥2%), T∆4% (∆SpO2≥4%), Time (Rest, Walking, Recovery), Desaturation Area/Distance Optional dataentry: BorgDyspnea(Baseline, End,Change), BorgFatigue (Ba- seline, End, Change), Arterial blood pressure (Systolic, Diastolic), Oxygen administered. Sleep Analysis Parameters Body position, SpO2 Events, Desaturation Index (ODI), Desaturation (Mean Value, Mean duration, Longest duration, Nadir Peak), ∆SpO2 (Min Drop, Max Drop), Total Variations, Pulse Rate Index, NOD89% (SpO2< 89%; >5min), NOD4% (SpO2 Basale–4%; >5min), NOD90% (SpO2<90%; Nadir<86%; >5min). ">

Spirobank II Smart Display 160 x 80 pixels Power supply 3.7 V, 110 mA Li battery, USB rechargerable Keypad 6-key membrane keyboard Data transmission USB + Bluetooth® Smart Dimensions device 160 x 55 x 25 mm Weight (w/ battery) 145 g Flow measurement ± 16 L/s Volume accuracy ± 3% or 50 mL Flow accuracy ± 5% or 200 mL/s Temperature sensor semiconductor (0-45°C), automtic BTPS conversion SpO2 measurement Optional: 0-99% SpO2 accuracy Optional: ± 2% between 70-99 %SpO2 Pulse Rate measurement Optional: 18-300 BPM Pulse Rate accuracy Optional: ± 2 BPM o 2% whichever is greater Configurable alarms ON-OFF Optional: SpO2 and pulse rate Min-Max, finger/sensor inserted, battery, out of energy Main spirometry parameters Using iPad software FVC, FEV1, FEV1/FVC%, PEF, FEF25–75 Additional spirometry parameters Using PC Software via USB, FVC, FEV1, FEV1/FVC, FEV1/VC, PEF,, FEF25, FEF50, FEF75, FEF25–75,, FEF75–85, Lung Age, Extrap. Volume,, FET, Time to PEF, FEV0.5, FEV0.5/FVC,, FEV0.75, FEV0.75/FVC, FEV2,, FEV2/FVC, FEV3, FEV3/FVC, FEV6,, FEV1/FEV6, FIVC, FIV1, FIV1/FIVC,, PIF, FIF25, FIF50, FIF75, FEF50/FIF50,, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE,, VT/tI, tE/tTOT, MVV (measured), MVV, (calculated) Oximetry Parameters Optional %SpO2 and Pulse Rate (Min, Max, Average) Windows Software Winspiro PRO® Bluetooth Smart Oximeter Optional Battery charger Optional ">

Power supply: Rechargeable battery and mains power

Temperature sensor: semiconductor (0-45 °C)

Flow sensor: bi-directional digital turbine

Flow range: ±16 L/s

Volume accuracy: ±3% or 50 mL

Flow accuracy: ±5% or 200 mL/s

Dynamic resistance: <0.5 cmH2O/L/s

Connectivity: USB 2.0, Bluetooth®2.1

Display: 7inch colour touch screen LCD, 800x480 resolution

Mouthpieces: ∅ 30 mm (1.18 inch)

Dimensions: 220 x 210 x 51 mm (8,66 x 8,26 x 2 in)

Weight: 1,450 g (battery pack included) (3,1 lb)

">

Spirobank IIBasic Display 160 x 80 pixels Power supply 3.7 V, 110 mA Li battery, USB rechargerable Keypad 6-key membrane keyboard Data transmission USB Dimensions device 160 x 55 x 25 mm Weight (w/ battery) 140 g Flow measurement ± 16 L/s Volume accuracy ± 3% or 50 mL Flow accuracy ± 5% or 200 mL/s Temperature sensor semiconductor (0-45°C), automtic BTPS conversion SpO2 measurement Not available SpO2 accuracy Not available Pulse Rate measurement Not available Pulse Rate accuracy Not available Configurable alarms ON-OFF Not available Main spirometry parameters FVC, FEV1, FEV1%, PEF, FEF25–75, FET, Extrap. Volume, Lung Age, VC, IVC, IC, ERV Additional spirometry parameters Not available Oximetry Parameters Not available Windows Software Winspiro PRO® Bluetooth No Oximeter No Battery charger No ">
